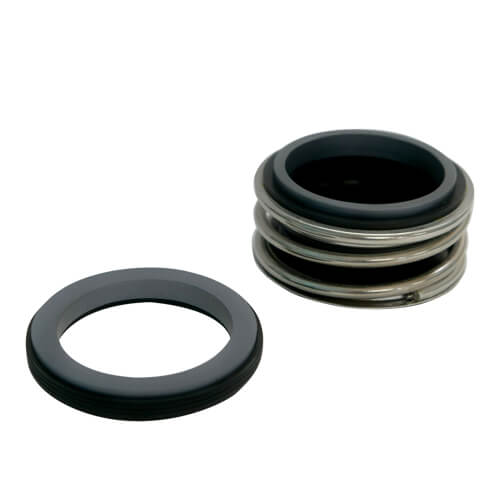

MECHANICAL SEAL – MS G1

Features

  • Single and dual seal
  • Unbalanced
  • Independent of direction of rotation
  • For plain shafts

Advantages

  • Protection of seal face during installation due to special bellows design
  • Universal application opportunities
  • Suitable for low-end and sewerage applications
  • Special design for hot water pumps (RMG12) available
  • Shaft protection over entire seal length
  • Non-metal contact with shaft/sleeve

Operating Range

  • Pressure: p1 = 16 bar (230 PSI), vacuum … 0.5 bar (7.25 PSI),
  • up to 1 bar (14.5 PSI) with seat locking
  • Temperature: t = -20 °C to +110 °C
  • Sliding velocity: vg = 10 m/s (33 ft/s)

Materials

  • Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1, eSiC-Q7)
  • Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)
  • Building services engineering
  • Waste water technology
  • Food technology
  • Petrochemical industry
  • Chemical industry
  • Oil Industry
