Operating Range
- Pressure: p1 = 7 bar (102 PSI), vacuum … 0.1 bar (1.45 PSI)
- Temperature: t = -20 °C to +100 °C
- Sliding velocity: vg = 5 m/s (16 ft/s)

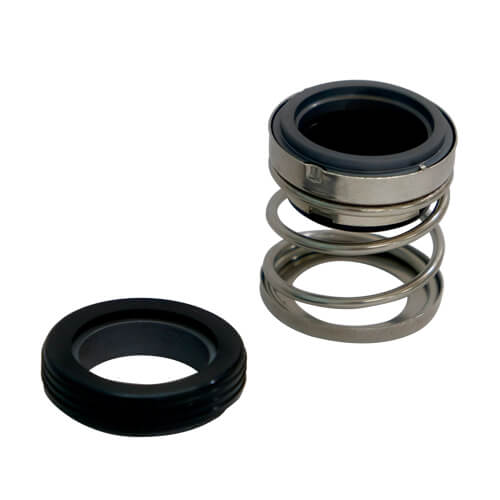

MECHANICAL SEAL – MS 56/56C
Features
- Single seal
- Loosely inserted seal face provides self-adjusting capability
- In-house manufactured sliding parts
Advantages
- Self-adjusting to shaft misalignments and deflections
-
Fulfils very specific leakage requirements
Materials
- Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
- Seat: Aluminium oxide (V), Silicon carbide (Q1, Q2)
Recommended Applications
- Water and waste water technology
- Chemical industry
- Process industry
